Basic knowledge of mechanical part drawing, CNC precision machining parts, turning and milling parts.

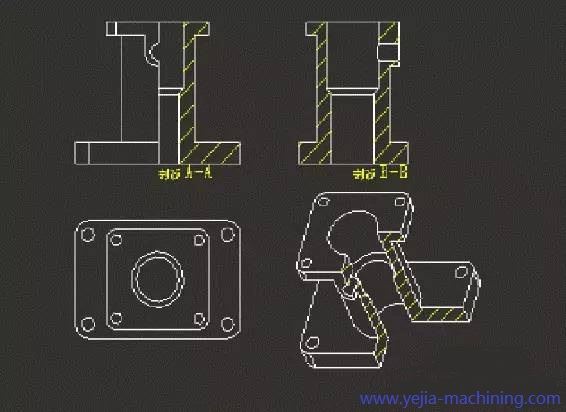

1. Question: what is full section view?
Answer: A cross-sectional view obtained by completely dissecting an object with a section plane.
2. Quesion: what is half section view?
Answer: When the object has a plane of symmetry, the figure obtained by projecting on the projection plane perpendicular to the plane of symmetry can be drawn with the center line as a boundary, half of which is drawn as a cross-sectional view, and the other half as a view, called a half-sectional view.
